型号Model 参数Parameters |
YTO-01A | YTO-02A | YTO-03A | YTO-04A | YTO-05A | YTO-06A | YTO-08AD | YTO-10AD | |||
|
制冷量 Cooling capacity |
Kw/h | 2.94 | 5.67 | 8.39 | 10.9 | 13.95 | 16.9 | 21.8 | 28.01 | ||
| Kcal/h | 2528 | 4872 | 7216 | 9347 | 11990 | 14560 | 18748 | 24089 | |||
| 运行控制方式 Control Type |
温度数显微电脑控制器 Digital temperature display microcomputer controller |
||||||||||
|
温控范围 Temperature range |
+3℃~常温(0℃以下可订制) 3℃-Room temperature(Below0℃ can be customized) |
||||||||||
| 电源Power supply | 1N-220V-50HZ | 3N-380V-50HZ(非标电源可订制) | |||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtection.etc | ||||||||||
| 总功率Total power | KW | 1.27 | 2.02 | 2.85 | 3.65 | 4.86 | 5.61 | 7.65 | 9.9 | ||
| 号士运行电流Vaximum Running Curren | A | 8 | 15.8 | 8.8 | 10.9 | 13.4 | 16 | 20.9 | 26.7 | ||
| 制冷剂Refrireant | 名称Name | R22(R410A R407C R134A) | |||||||||
| 充注量Charge | 0.8x1 | 1.8x1 | 2.7x1 | 3.5x1 | 43x1 | 5.0x1 | 3.5x2 | 4.3x2 | |||
| 控制方式 |
毛细管/外平衡式热力膨胀阀 Capillary Tube/Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
| Controltyp | |||||||||||
| 压缩机Compresson | 类型Type | 全封闭涡旋式或活塞式 Hermetic scroll type or piston | |||||||||
| 功率KW | 0.75 | 1.5 | 2.2 | 3 | 3.75 | 4.5 | 3.0×2 | 3.75x2 | |||
| 风机Blower | 风量M³h | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | ||
| 功率KW | 0.14 | 0.14 | 0.28 | 0.28 | 0.36 | 0.36 | 0.9 | 0.9 | |||
| 冷凝器condensator | 型式Form |
高效铜管套波纹型铝翅片 Efficient brass sets corrugated aluminum fin |
|||||||||
| 蒸发器Evaporator | 型式Type |
水箱盘管式/干式壳管式 Submerged Coil Type/Dry Shell And Tube Type |
|||||||||
| 冷冻水量M³/h | 0.51 | 0.97 | 1.44 | 1.87 | 2.4 | 2.91 | 3.75 | 4.82 | |||
| 水箱容量L | 28 | 40 | 50 | 50 | 65 | 65 | 130 | 180 | |||
| 进出水管径G | G1/2" | G1/2" | G3/4" | G3/4" | G1" | G1" | G1-1/2" | G2" | |||
| 循环水泵Circulating pump | 功率KW | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | ||
| 扬程m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 23 | |||
| 机器尺寸Machine size | 长L/mm | 680 | 800 | 940 | 940 | 1050 | 1050 | 1400 | 1400 | ||
| 宽W/mm | 420 | 480 | 555 | 555 | 600 | 600 | 720 | 720 | |||
| 高H/mm | 720 | 850 | 1060 | 1060 | 1220 | 1220 | 1410 | 1410 | |||
| 机组重量Unit weight | KG | 60 | 90 | 130 | 140 | 180 | 210 | 270 | 350 | ||
|
型号Model 参数Parameters |

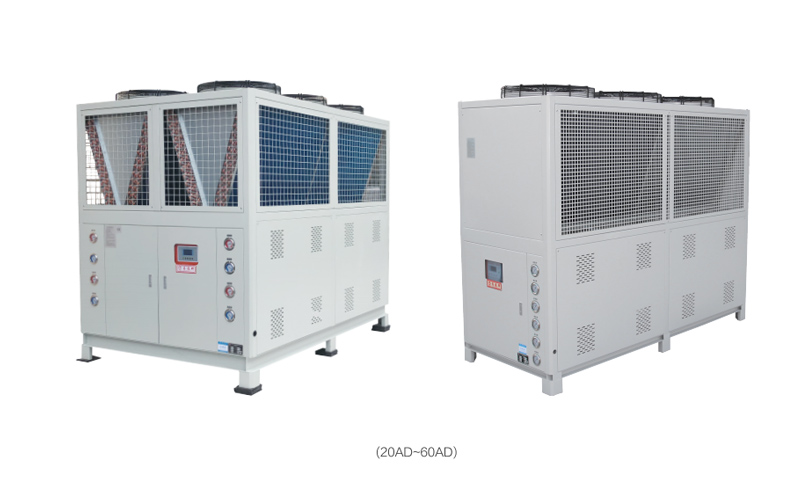

YTO-12AD | YTO-15AD | YTO-20AD | YTO-25AD | YTO-30AD | YTO-40AD | YTO-50AD | YTO-60AD | |||
|
制冷量 Cooling capacity |
Kw/h | 33.79 | 44.15 | 59.08 | 71.72 | 87.2 | 113.58 | 135.49 | 181.68 | ||
| Kcal/h | 29059 | 37965 | 50805 | 61683 | 74992 | 97675 | 116521 | 156249 | |||
| 运行控制方式 Control Type |
温度数显微电脑控制器 Digital temperature display microcomputer controller |
||||||||||
|
温控范围 Temperature range |
+3℃~常温(0℃以下可订制) 3℃-Room temperature(Below O℃ can be customized) |
||||||||||
| 电源Power supply | 3N-380V-50HZ(非标电源可订制) | ||||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtection.etc | ||||||||||
| 总功率Total power | KW | 11.4 | 13.7 | 18.8 | 22.75 | 28.5 | 37.1 | 46.2 | 55.2 | ||
| 最大运行电流Maximum Runing Curent | A | 26.22 | 31.51 | 43.24 | 52.32 | 65.55 | 81.62 | 101.64 | 121.44 | ||
|
制冷剂 Refrireant |
名称Name | R22(R410A R407C R134A) | |||||||||
| 充注量Charge | KG | 5.0x2 | 6.5x2 | 8.5x2 | 10.5x2 | 8.5x3 | 8.5x4 | 10.5x4 | 13.0x4 | ||
| 控制方式 |
外平衡式热力膨胀阀 Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
| Controltyp | |||||||||||
|
压缩机 Compresson |
类型Type | 全封闭涡旋式或活塞式Hermetic scroll type or piston | |||||||||
| 功率KW | 4.5X2 | 5.5x2 | 7.5x2 | 9.3x2 | 7.5x3 | 7.5x4 | 9.3x4 | 11.0x4 | |||
|
风机 Blower |
风量M³/h | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | 50000 | 60000 | ||
| 功率KW | 0.9 | 1.2 | 1.6 | 1.8 | 2.5 | 3.1 | 4.7 | 5.3 | |||
|
冷凝器 condensator |
型式Form |
高效铜管套波纹型铝翅片 Efficient brass sets corrugated aluminum fin |
|||||||||
|
蒸发器 Evaporator |
型式Type |
水箱直列式/干式壳管式 Submerged ColType/Dry Shell And Tube Type |
|||||||||
| 冷冻水量M³/h | 5.81 | 7.6 | 10.06 | 12.34 | 15.2 | 19.53 | 23.3 | 30.52 | |||
| 水箱容量L | 180 | 210 | 280 | 320 | 400 | 610 | 660 | 720 | |||
| 进出水管径G | G2" | G2" | G2" | G2-1/2" | G2-1/2" | G3" | G3" | G3" | |||
|
循环水泵 Circulating pump |
功率KW | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 5.5 | ||
| 扬程m | 22 | 22 | 22 | 22 | 25 | 25 | 25 | 25 | |||
|
机器尺寸 Machine size |
长L/mm | 1600 | 1600 | 1800 | 2000 | 2400 | 2350 | 2350 | 2500 | ||
| 宽W/mm | 800 | 800 | 900 | 1000 | 1000 | 1550 | 1550 | 1550 | |||
| 高H/mm | 1580 | 1680 | 1700 | 1900 | 1870 | 1800 | 1900 | 1900 | |||
| 机组重量Unit weight | KG | 390 | 490 | 620 | 790 | 880 | 1020 | 1290 | 1510 | ||
| 参数Parameters | 型号Model | YTO-05AT | YTO-10AT | YTO-12AT | YTO-15AT | YTO-20AT | YTO-25AT | YTO-30AT | YTO-40AT | ||
|
制冷量 Cooling capacity |
Kw/h(-5℃) | 7.81 | 17.93 | 20.02 | 26.14 | 35.86 | 40.04 | 52.28 | 66.88 | ||
| Kcal/h(-5℃) | 6720 | 15420 | 17220 | 22480 | 30840 | 34430 | 44950 | 57520 | |||
|
制冷量 Cooling capacity |
Kw/h(-15℃) | 4.13 | 9.32 | 10.41 | 13.59 | 18.65 | 20.81 | 27.5 | 37.3 | ||
| Kcal/h(-15℃) | 3552 | 8015 | 8953 | 11687 | 16039 | 17897 | 23650 | 32078 | |||
| 运行 |
温度数显微电脑控制器 Digital temperature display mcrocomputer controller |
||||||||||
|
温控范围 Temperature range |
-15℃~+5℃ | ||||||||||
| 电源Power supply | 3N-380V-50HZ(非标电源可订制) | ||||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtection.etc |
||||||||||
| 总功率Total power | KW | 4.86 | 9.9 | 11.4 | 13.7 | 18.8 | 22.75 | 28.5 | 37.1 | ||
| 最大运行电流Maximum Ruming Curent | A | 10.6 | 19.51 | 23.6 | 30.85 | 39.82 | 43.1 | 56.39 | 74.62 | ||
|
制冷剂 Refrireant |
名称Name | R22(R404A) | |||||||||
| 充注量Charge | KG | 43x1 | 4.3x2 | 5.0x2 | 65x2 | 8.5x2 | 10.5x2 | 8.5x3 | 8.5x4 | ||
|
控制方式 Controltyp |
外平衡式热力膨胀阀 Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
|
压缩机 Compresson |
类型Type | 全封闭涡旋式或活塞式Hermetic scroll type or piston | |||||||||
| 功率KW | 3.75x1 | 3.75x2 | 4.6x2 | 5.5x2 | 7.5x2 | 9.4x2 | 75x3 | 7.5x4 | |||
|
风机 Blower |
风量M³/h | 5000 | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||
| 功率KW | 0.36 | 0.9 | 1.2 | 1.2 | 1.6 | 1.8 | 2.5 | 3.1 | |||
|
冷凝器 condensator |
型式Form |
高效铜管套波纹型铝翅片 Efficient brass sets corrugated aluminum fin |
|||||||||
| 型式Type | 316L不锈钢钎焊板换式/干式壳管式Dry Shell And Tube Type | ||||||||||
| 冷冻水量M³/h | 1.458 | 3.348 | 3.738 | 4.878 | 669 | 7.47 | 9.75 | 12.48 | |||
|
蒸发器 Evaporator |
水箱容量L | 65 | 180 | 210 | 210 | 280 | 320 | 350 | 610 | ||
| 进出水管径G | G1" | G1-1/2" | G1-1/2" | G2" | G2" | G2" | G2-1/2" | G2-1/2" | |||
|
循环水泵 Circulating pump |
功率KW | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | ||
| 扬程m | 22 | 22 | 22 | 22 | 25 | 25 | 25 | 25 | |||
|
机器尺寸 Machine size |
长L/mm | 1050 | 1400 | 1600 | 1600 | 1800 | 2000 | 2400 | 2350 | ||
| 宽 W / m m | 600 | 720 | 800 | 800 | 900 | 1000 | 1000 | 1550 | |||
| 高 H / m m | 1220 | 1410 | 1580 | 1680 | 1700 | 1900 | 1870 | 1800 | |||
| 机组重量Unitweight |
|
KG | 170 | 350 | 370 | 520 | 590 | 790 | 880 | 1100 | |
