| 型号Model 参数Parameters | YTO-03W | YTO-04W | YTO-05W | YTO-06W | YTO-08WD | YTO-10WD | YTO-12WD YTO-15WD | ||||
|
制冷量 Cooling capacity |
Kw/h | 9.59 | 12.43 | 15.91 | 19.18 | 24.85 | 31.83 | 38.37 | 50.14 | ||
| Kcal/h | 8251 | 10682 | 13690 | 16503 | 21370 | 27370 | 32994 | 43120 | |||
| 运行控制方式 Control Type |
温度数显微电脑控制器 Digital temperature display microcomputer controller |
||||||||||
|
温控范围 Temperature range |
+3℃~常温(0℃以下可订制) 3℃-Room temperature(Below0℃ can be customized) |
||||||||||
| 电源Power supply | 3N-380V-50HZ(非标电源可订制) | ||||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtection.etc | ||||||||||
| 总功率Total power | KW | 2.8 | 3.55 | 4.5 | 5.4 | 6.8 | 8.4 | 10.1 | 13.1 | ||
| 最大运行电流Maximum Rurning Curent | A | 6.7 | 8.4 | 10.5 | 12.6 | 16.5 | 20.4 | 24.6 | 31.8 | ||
|
制冷剂 Refrireant |
名称Name | R22(R410A R407C R134A) | |||||||||
| 充注量Charge | 1.7x1 | 2.2x1 | 2.8x1 | 3.4x1 | 2.2x2 | 2.8x2 | 34x2 | 4.2x2 | |||
|
控制方式 Controltyp |
毛细管/外平衡式热力膨胀阀 Capillary Tube/Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
|
压缩机 Compresson |
类型Type | 全封闭涡旋式或活塞式Hermetic scroll type or piston | |||||||||
| 功率KW | 2.25 | 3 | 3.75 | 4.5 | 3.0x2 | 3.75x2 | 4.5x2 | 5.5x2 | |||
|
冷凝器 condensator |
型式Form |
高效铜管壳管片 Efficient copper tube shell and tube type |
|||||||||
| 冷却水量M³/h | 2.06 | 2.67 | 3.42 | 4.13 | 5.34 | 6.85 | 8.24 | 10.78 | |||
| 进出水管径G | G3/4" | G3/4" | G1" | G1" | G1-1/2" | G2" | G2" | G2" | |||
|
蒸发器 Evaporator |
型式Type |
水箱盘管式/干式壳管式 Submerged Coil Type/Dry Shell And Tube Type |
|||||||||
| 冷冻水量M³/h | 1.65 | 2.14 | 2.75 | 3.3 | 4.27 | 5.47 | 6.59 | 8.62 | |||
| 水箱容量L | 50 | 50 | 65 | 75 | 120 | 150 | 180 | 210 | |||
| 进出水管径G | G3/4" | G3/4" | G1" | G1" | G1-1/2" | G2" | G2" | G2" | |||
|
循环水泵 Circulating pump |
功率KW | 0.375 | 0.375 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | ||
| 扬程m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 23 | |||
|
机器尺寸 Machine size |
长L/mm | 850 | 850 | 850 | 1080 | 1300 | 1300 | 1300 | 1600 | ||
| 宽 W / m m | 480 | 480 | 480 | 550 | 650 | 650 | 650 | 750 | |||
| 高H/mm | 980 | 980 | 980 | 1000 | 1340 | 1340 | 1340 | 1550 | |||
| 机组重量Unit weight | KG | 120 | 140 | 150 | 200 | 220 | 290 | 310 | 400 | ||

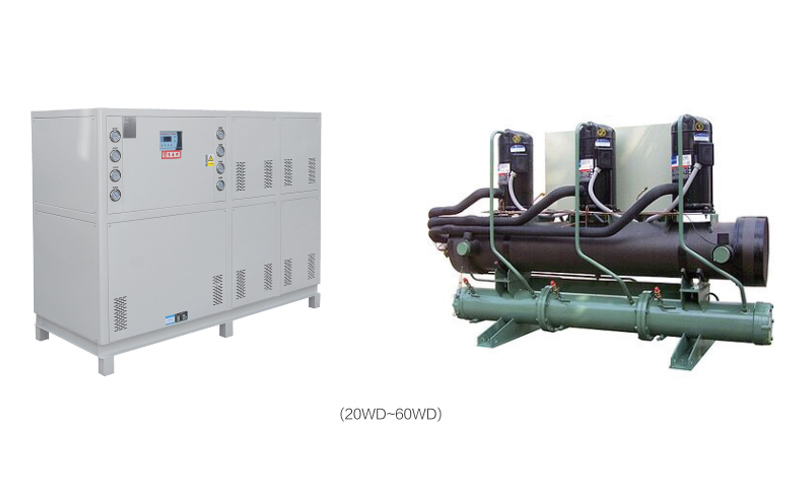

| 型号Model 参数Parameters | YTO-20WD | YTO-25WD | YTO-30WD | YTO-35WD | YTO-40WD | YTO-45WD | YTO-50WD | YTO-60WD | |||
|
制冷量 Cooling capacity |
Kw/h | 67.14 | 81.53 | 99.19 | 117.28 | 129.06 | 148.68 | 153.91 | 198.12 | ||
| Kcal/h | 57748 | 70120 | 85303 | 100869 | 110984 | 127868 | 132359 | 170383 | |||
| 运行控制方式 Control Type |
温度数显微电脑控制器 Digital temperature display microcomputer controller |
||||||||||
|
温控范围 Temperature range |
+3℃~常温(0℃以下可订制) 3℃-Room temperature(Below O℃ can be customized) |
||||||||||
| 由源Power supply | 3N-380V-50HZ(非标电源可订制) | ||||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtection.etc | ||||||||||
| 总功率Total power | KW | 17.2 | 20.95 | 25.6 | 30.75 | 33.1 | 37.5 | 41.25 | 50.62 | ||
| 最大运行电流Maxmum Runing Curert | A | 42.1 | 48.5 | 58.3 | 65.4 | 75.4 | 80.6 | 88.4 | 116.3 | ||
|
制冷剂 Refrireant |
名称Name | R22(R410A R407C R134A) | |||||||||
| 充注量Charge | 5.6x2 | 7.0x2 | 5.6x3 | 6.8x3 | 5.6x4 | 8.4x3 | 7.0x4 | 8.4x4 | |||
|
控制方式 Controltyp |
外平衡式热力膨胀阀 Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
|
压缩机 Compresson |
类型Type | 全封闭涡旋式或活塞式Hermetic scrolltype or piston | |||||||||
| 功率KW | 7.5x2 | 9.3x2 | 7.5x3 | 9.0x3 | 7.5x4 | 11.3x3 | 9.3x4 | 11.3x4 | |||
|
冷凝器 condensator |
型式Form |
高效铜管壳管片 Efficient copper tube shell and tube type |
|||||||||
| 冷却水量M³/h | 14.44 | 17.54 | 21.32 | 25.22 | 27.74 | 31.98 | 33.09 | 41.61 | |||
| 进出水管径G | G2" | G2" | G2-1/2" | G2-1/2" | G3" | G3" | G3" | G3" | |||
|
蒸发器 Evaporator |
型式Type |
水箱直列式/干式壳管式 Submerged Coil Type/Dry Shell And Tube Type |
|||||||||
| 冷冻水量M³/h | 11.55 | 14.03 | 17.06 | 20.18 | 22.19 | 25.58 | 26.48 | 33.28 | |||
| 水箱容量L | 260 | 290 | 320 | 350 | 380 | 400 | 500 | 600 | |||
| 进出水管径G | G2" | G2" | G2-1/2" | G2-1/2" | G3" | G3" | G3" | G3" | |||
|
循环水泵 Circulating pump |
功率KW | 2.2 | 2.2 | 3 | 30 | 3.75 | 3.75 | 3.75 | 5.5 | ||
| 扬程m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 23 | |||
|
机器尺寸 Machine size |
长L/mm | 1800 | 1800 | 2000 | 2000 | 2280 | 2280 | 2280 | 2280 | ||
| 宽 W / m m | 800 | 800 | 900 | 900 | 1000 | 1000 | 1000 | 1300 | |||
| 高H/mm | 1550 | 1550 | 1600 | 1600 | 1660 | 1660 | 1660 | 1890 | |||
| 机组重量Unit weight | KG | 460 | 520 | 690 | 760 | 850 | 950 | 1020 | 1100 | ||
| 参数Parameters | 型号Model | YTO-05WT | YTO-10WT | YTO-15WT | YTO-20WT | YTO-25WT | YTO-30WT | YTO-40WT | YTO-50WT | ||
|
制冷量 Cooling capacity |
Kw/h(-5℃) | 9.31 | 20.13 | 29.37 | 40.26 | 47.98 | 58.74 | 80.52 | 95.96 | ||
| Kcal/h(-5℃) | 8007 | 17312 | 25258 | 34624 | 41263 | 50516 | 69247 | 82526 | |||
|
制冷量 Cooling capacity |
Kw/h(-15℃) | 5.3 | 11.1 | 16.7 | 22.2 | 26.9 | 33.4 | 44.5 | 53.8 | ||
| Kcal/h(-15℃) | 4558 | 9546 | 14362 | 19092 | 23134 | 28724 | 38270 | 46268 | |||
| 运行控制方式 Control Type |
温度数显微电脑控制器 Digital temperature display microcomputer controller |
||||||||||
|
温控范围 Temperature range |
-15℃~+5℃ | ||||||||||
| 电源Power supply | 3N-380V-50HZ(非标电源可订制) | ||||||||||
|
安全保护装置 Safety Protection Device |
过载保护、逆缺相保护(3相)、高/低压保护、水流量过低保护、液位过低保护、防冻保护等 Overload.InversePhase(3ph).High/LowPressure.WaterFlow.WaterLevel.AntifreezeProtectionetc |
||||||||||
| 总功率Total power | KW | 4.25 | 8.25 | 12.45 | 17.25 | 21 | 25.5 | 33.75 | 41.25 | ||
| 最大运行电流Maximum Ruming Curent | A | 8.84 | 18.1 | 25.24 | 36.23 | 44.12 | 53.52 | 70.88 | 86.62 | ||
|
制冷剂 Refrireant |
名称Name | R22(R404A) | |||||||||
| 充注量Charge |
|
3.5x1 | 7.0x1 | 5.2x2 | 7.0x2 | 8.5x2 | 7.0x3 | 7.0x4 | 8.5x4 | ||
|
控制方式 Controltyp |
外平衡式热力膨胀阀 Extctnal Balanced Thcrmostatic Expansion Valvc |
||||||||||
|
压缩机 Compresson |
类型Type | 全封闭涡旋式或活塞式Hermetic scroll type or piston | |||||||||
| 功率KW | 3.75x1 7.50x1 5.6x2 7.5x2 9.2x2 7.5x3 7.5x4 9.2x4 | ||||||||||
|
冷凝器 condensator |
型式Form |
高效铜管壳管片 Efficient copper tube shell and tube type |
|||||||||
| 冷却水量M³/h | 3.42 | 6.85 | 10.78 | 14.44 | 17.54 | 21.32 | 27.74 | 33.09 | |||
| 进出水管径G | G1" | G1-1/2" | G2" | G 2" | G2" | G2-1/2" | G3" | G3" | |||
|
蒸发器 Evaporator |
型式Type | 316L不锈钢钎焊板换式/干式壳管式Dry Shell And Tube Type | |||||||||
| 冷冻水量M³/h | 1.6 | 3.46 | 5.05 | 6.92 | 8.25 | 10.1 | 13.85 | 16.51 | |||
| 水箱容量L | 65 | 180 | 210 | 280 | 320 | 350 | 610 | 610 | |||
| 进出水管径G | G1" | G1-1/2" | G1-1/2" | G²" | G2" | G2" | G2-1/2" | G2-1/2" | |||
|
循环水泵 Circulating pump |
功率KW | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 3.75 | 3.75 | ||
| 扬程m | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 23 | |||
|
机器尺寸 Machine size |
长L/mm | 1080 | 1300 | 1460 | 1800 | 1800 | 2000 | 2280 | 2280 | ||
| 宽W/mm | 550 | 650 | 700 | 800 | 800 | 900 | 1000 | 1000 | |||
| 高H/mm | 980 | 1340 | 1450 | 1550 | 1550 | 1650 | 1780 | 1780 | |||
| 机组重量Unit weight | KG | 150 | 290 | 400 | 440 | 520 | 690 | 850 | 1000 | ||
